Precise Concentricity Alignment in Three-Jaw Chuck Clamping Systems

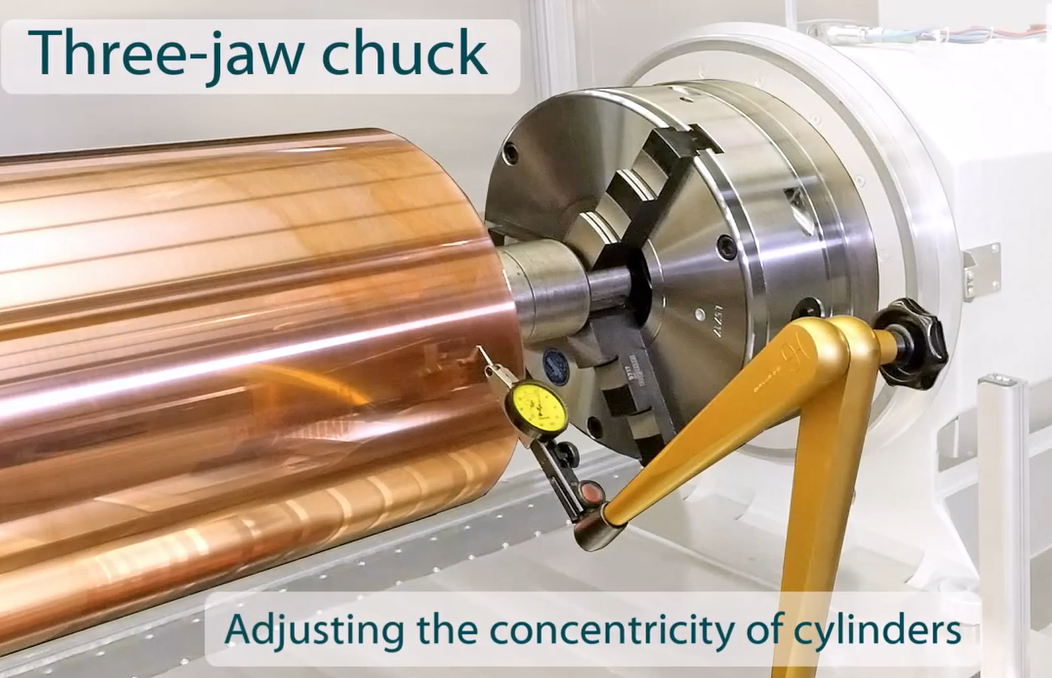

The accurate positioning of rotogravure cylinders and embossing rollers within a three-jaw chuck of an engraving machine is a fundamental prerequisite for achieving high-resolution and reproducible engraving results. While the instructional video provided by Hell Gravure Systems (at the end of the article) demonstrates the essential steps for setting concentricity, a deeper technical understanding of the underlying mechanical and metrological principles remains indispensable. Such knowledge enables operators to identify error mechanisms, control influencing factors and ensure long-term process stability.

Mechanical Principles and Interpretation of Concentricity Measurements

Three-jaw chucks operate through the synchronous radial movement of all jaws, creating a nominally self-centring effect. Although this mechanism is theoretically robust, it is highly sensitive to real-world deviations such as contamination of the contact surfaces, uneven jaw wear or minor geometric imperfections on the journals of cylinders or embossing rollers. Even marginal departures from ideal geometry can produce residual eccentricity that the clamping system cannot automatically compensate. These deviations manifest as sinusoidal or asymmetric dial indicator traces and reveal underlying mechanical sources of error. Consequently, the practical steps demonstrated in the video gain considerably greater significance when interpreted through a metrological lens.

During concentricity measurement, the dial indicator is typically positioned close to the clamping zone, where the mechanical influence of the jaws is most pronounced. Additional measurements along the cylinder or roller surface provide further information regarding bending stiffness, material behaviour and potential angular misalignment between the journals and the cylinder body. Significant discrepancies between readings at these locations often indicate conical journals, uneven seating or deformation-related effects. A reliable diagnosis generally requires evaluation of multiple axial and circumferential measurement points to reconstruct the spatial distribution of error and avoid misinterpretation.

Fine adjustment of concentricity is not achieved by abruptly releasing the clamping force, but rather through the gradual and highly controlled relaxation of individual jaws. This allows the cylinder or roller to settle into a mechanically stable position governed by the interplay of friction, material tolerances and elastic properties. Operators approach the optimal position through iterative micro-adjustments while continuously monitoring run-out values. This process underscores the disparity between theoretical self-centring behaviour and the complex dynamics of real mechanical systems, in which even microscopic particles or minute surface irregularities may induce tilting or misalignment.

Once an apparently optimal position has been established, the cylinder or roller must be rotated through several complete revolutions to identify any settling or relaxation effects. Even minor elastic or plastic shifts at the contact surfaces can influence the measurement values. Only when run-out readings remain consistent over multiple rotational cycles can the alignment be considered mechanically stable and suitable for high-precision engraving operations.

Impact on Engraving Quality and Long-Term System Stability

The importance of meticulous concentricity alignment becomes especially apparent when considering its impact on the engraving process. In electromechanical engraving, deviations of only a few micrometres can lead to fluctuating stylus forces, unstable cell structures or resonance-induced tool vibrations. Laser engraving systems display comparable sensitivity, as the stability of the laser focus depends on exact and repeatable cylinder rotation. Even slight eccentricities alter the distance between optical components and the surface, resulting in localised defocusing or variations in beam energy.

Conclusion

This detailed examination complements the practical procedures illustrated in the video by presenting the physical and metrological principles that govern concentricity alignment. Each phase of the adjustment process—from measurement and diagnostic interpretation to micro-adjustment and final stability verification—plays a vital role in achieving reproducible run-out performance for rotogravure cylinders and embossing rollers. By integrating theoretical understanding with practical execution, operators can not only perform the techniques demonstrated in the video with greater precision, but also refine them and embed them sustainably within quality assurance practices.
